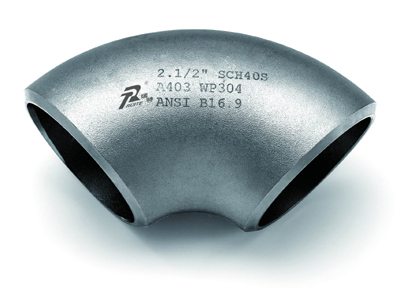

不锈钢90°短弯头

作者:admin 来源: 日期:2012-10-10 22:47:27 人气: 标签:不锈钢管件

不锈钢90°短弯头

规格表1
公称通径外径(MM)中心距至端面的距离理论重量KG/PCS
---FP5S10S20S40S80S
203/425 20.7-------
25132 33.425500.0550.0960.110.110.15
3211/438 42.232640.069 0.0750.102 0.1320.14 0.150.158 0.170.20 0.236
4011/245 48.338760.12 0.130.18 0.1860.2 0.210.22 0.240.3 0.33
50257 60.3511020.17 0.1760.297 0.3080.787 0.3960.42 0.440.6 0.616
6521/273 76.1641280.35 0.3640.53 0.5460.64 0.6550.89 0.911.0 1.29
80389761520.4860.7290.9721.361.94
9031/2101.6891780.71.051.41.962.8
1004108 114.31022040.90 0.941.2 1.41.7 1.8762.56 2.774.0 4.13
1255133 141.3 139.71272541.8 2.022.1 2.373.2 3.494.0 4.46.5 6.98
1506159 168.3 165.21523042.6 2.93.1 3.44.8 5.06.8 7.110.3 11.0
2008219 216.32034066.25 5.07.0 6.811.08 10.714.1 13.522 21
25010273 267.325450810.08 9.711.2 10.017.6 16.024.6 23.044.8 40.0
30012325 323.9 318.530561014.816.723.33764.5
35014377 355.635671119.1 15.622 19.538 3448.6 42.680.0 74.0
40018426 406.440681229.0 26.535 3057.0 49.967 62149.0 135.0
50020529 5085081016-----
550225595591118-----
规格表2
公称通径外径(MM)中心距至端面的距离理论重量KG/PCS
DN ODFB5S10S20S40S80S120S
151/218 21.338160.04 0.050.05 0.060.059 0.0630.06 0.080.08 0.10
203/425 26.738 0.06 0.060.07 0.080.08 0.090.09 0.100.13 0.13
25132 33.438160.08 0.080.12 0.130.13 0.1350.14 0.140.18 0.19
321.1/438 42.248200.11 0.130.18 0.210.21 0.240.23 0.260.31 0.35
401.1/245 48.357240.16 0.170.26 0.280.30 0.320.33 0.350.44 0.48
50257 60.376320.28 0.290.45 0.470.59 0.610.62 0.660.95 0.90
652.1/273 76.195400.55 0.570.80 0.830.96 1.11.25 1.311.72 1.80
80389114470.801.171.62.062.86
903.1/2101.6133551.081.572.12.743.82
1004108 114.3152631.31 1.391.01 2.032.65 2.873.54 3.765.13 5.466.27 6.68
1255133 141.3 139.7190792.68 2.82 2.873.24 3.45 3.414.81 5.12 5.066.16 6.54 6.478.71 9.25 9.1411.3 12.0 11.9
1506159 168.3 165.2229953.85 4.10 4.034.69 4.96 4.876.97 7.38 7.249.56 10.1 9.9514.4 15.3 15.018.6 19.8 19.4
2008219 216.33051267.15 7.059.65 9.5316.1 15.920.4 20.131.0 30.543.1 42.5
25010273 267.438112813.7 13.216.7 16.325.8 24.636.2 35.457.2 56.279.7 77.6
30012325 323.9 318.545718923.0 22.6 22.326.1 26.0 25.536.1 36.0 35.355.7 55.5 56.195.2 94.8 92.7133 133 132
35014377 355.653322130.8 29.036.9 34.760.2 56.783.1 78.2147 138202 189
40016426 406.461025341.8 39.947.7 45.578.0 74.3122 116211 201280 267
45018478 457.268628452.9 50.560.3 57.787.7 83.8175 167301 287422 403
50020529 50876231674.2 71.384.9 81.5146 140242 232414 398577 552
5502255983834786.398.8169 307694
60024630 610914379122 118141 137209 202379 367657 638951 918
65026660991410  315
70028720 7111067442  371 366
750307621143473214264421
80032820 8131219506  484 480663 657
850348641295537  542742
90036920 9141372568  612 608914 908
